Single Girder Gantry Cranes

Single Girder Gantry Crane Manufacturer – Balaji Cranes Pvt. Ltd.

Balaji Cranes Pvt. Ltd. is a manufacturer of Single Girder Gantry Cranes designed for efficient, reliable, and cost-effective material handling in industrial environments. These cranes are suitable for manufacturing units, engineering workshops, warehouses, fabrication facilities, construction sites, and industrial yards where lifting and transporting materials is an essential part of daily operations.

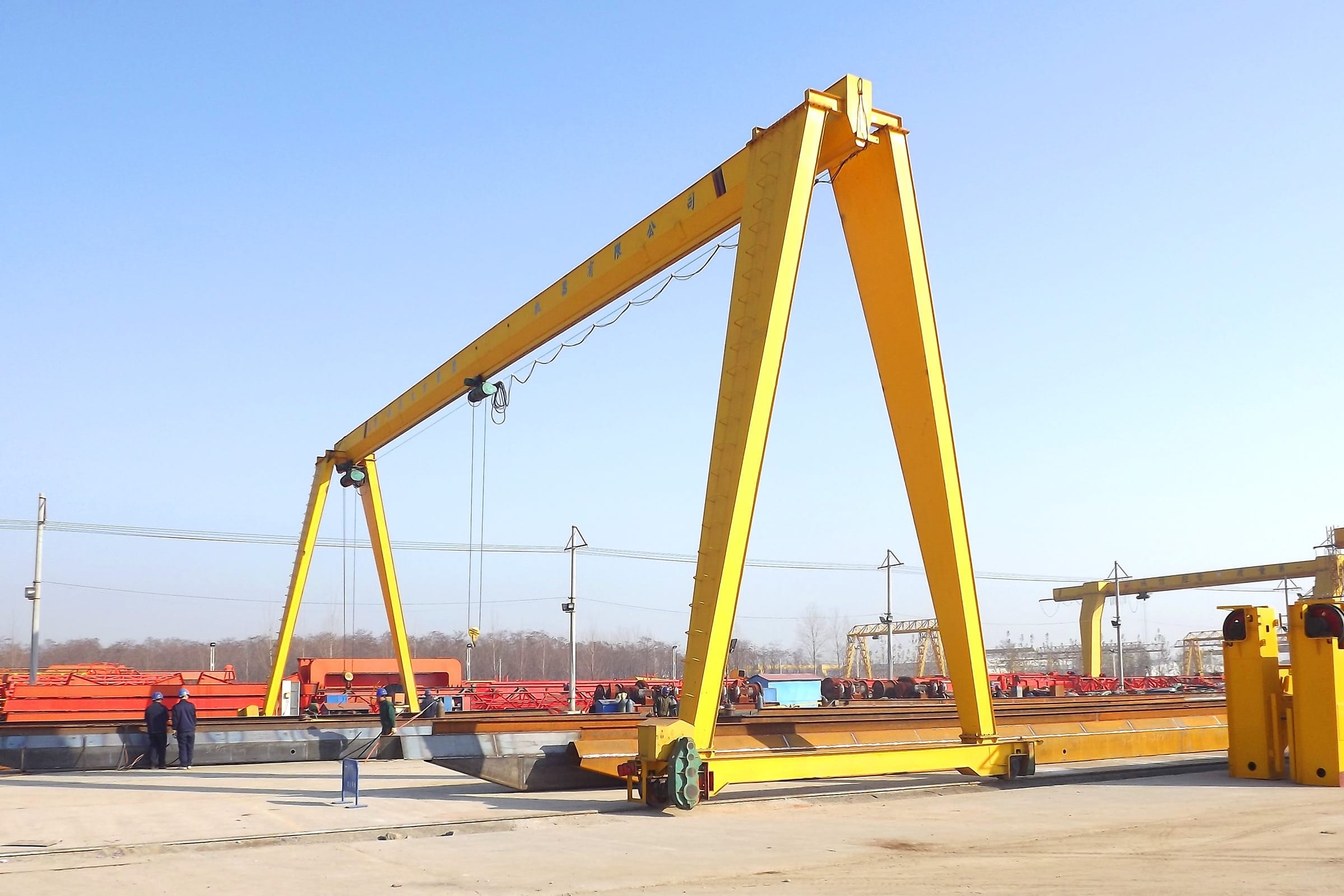

A Single Girder Gantry Crane consists of one main horizontal girder supported by two legs that travel on ground-level rails or a suitable travelling surface. It is an ideal solution for applications where an overhead crane runway is unavailable or where a flexible material handling system is required. Its practical design makes it suitable for handling materials across designated working areas.

At Balaji Cranes Pvt. Ltd., Single Girder Gantry Cranes can be customized according to lifting capacity, span, lifting height, operating speed, and site requirements. These cranes help streamline material movement, improve workflow, and support productive industrial operations.

Key Features of Single Girder Gantry Cranes

- Robust Structural Design: A single main girder supported by sturdy gantry legs for dependable lifting operations.

- Space-Efficient Installation: Suitable for locations where elevated overhead crane runways are not available.

- Efficient Material Handling: Supports lifting, lowering, cross travel, and long travel.

- Customizable Lifting Capacity: Designed according to load requirements and application needs.

- Flexible Installation: Suitable for indoor industrial spaces and outdoor yards, depending on the design.

- Reliable Hoisting System: Can be equipped with an electric wire rope hoist or electric chain hoist, as appropriate.

- Easy Operation: Can be provided with pendant or radio remote controls, depending on the configuration.

- Safety Features: Options may include overload protection, limit switches, emergency stops, and suitable braking systems.

Technical Specifications

Parameter Specification

Crane Type Single Girder Gantry Crane

Main Girder Single horizontal girder

Support Structure Gantry legs and end carriages

Lifting Capacity As per project requirements

Span Customized according to site layout

Lifting Height As per application requirements

Hoisting Mechanism Electric wire rope hoist or electric chain hoist

Travel Motions Hoisting, cross travel, and long travel

Control System Pendant or radio remote control, as required

Installation Indoor or outdoor, depending on design

Safety Systems As specified in the crane design

Applications Industrial material handling and lifting operations

Final specifications depend on lifting requirements, span, working duty, installation conditions, and applicable safety standards.

Applications of Single Girder Gantry Cranes

Single Girder Gantry Cranes are widely used in industrial environments for lifting and transporting materials efficiently. Common applications include:

- Manufacturing and engineering workshops

- Steel fabrication and metalworking units

- Warehouses and storage facilities

- Construction and infrastructure projects

- Automobile and machinery manufacturing units

- Industrial assembly areas

- Equipment manufacturing facilities

- Maintenance and repair workshops

- Loading and unloading areas

- Small and medium-sized industrial production units

Benefits of Single Girder Gantry Cranes

1. Cost-Effective Material Handling

The single-girder configuration can offer an economical lifting solution for applications with suitable load and span requirements.

2. Flexible Installation

Gantry legs support the crane, reducing the need for a conventional elevated overhead runway structure.

3. Efficient Space Utilization

The crane can be designed to suit available floor space and the layout of industrial working areas.

4. Improved Productivity

Controlled lifting and transportation of materials can help reduce manual handling and improve workflow.

5. Customized Design

Lifting capacity, span, lifting height, control arrangements, and travel speeds can be selected according to the application.

6. Versatile Industrial Use

Suitable configurations are available for various manufacturing, fabrication, warehousing, and material handling operations.

Frequently Asked Questions (Q&A)

Q1. What is a Single Girder Gantry Crane?

A Single Girder Gantry Crane is a lifting system that uses one main horizontal girder supported by legs. The crane travels along ground-level rails or a suitable travelling surface to lift and move materials across an industrial area.

Q2. What is the difference between a Single Girder Gantry Crane and a Single Girder EOT Crane?

A Single Girder Gantry Crane is supported by travelling legs, while a Single Girder EOT Crane typically runs on elevated runway beams attached to the building structure. Gantry cranes are often suitable for open yards or facilities without an elevated crane runway.

Q3. Where are Single Girder Gantry Cranes used?

They are commonly used in manufacturing units, warehouses, fabrication workshops, engineering facilities, construction sites, and industrial yards.

Q4. What is the lifting capacity of a Single Girder Gantry Crane?

The lifting capacity depends on the structural design, span, hoisting mechanism, and working duty. The appropriate capacity should be selected according to the intended load and application.

Q5. Can Single Girder Gantry Cranes be customized?

Yes. They can be customized according to lifting capacity, span, lifting height, travel speed, control system, installation layout, and operational requirements.
