Double Girder Semi Gantry Cranes

Double Girder Semi Gantry Crane Manufacturer – Balaji Cranes Pvt. Ltd.

Balaji Cranes Pvt. Ltd. is a manufacturer of Double Girder Semi Gantry Cranes designed for heavy-duty lifting and efficient material handling across various industrial applications. These cranes are suitable for manufacturing plants, engineering workshops, steel fabrication units, warehouses, and industrial facilities that require reliable movement of heavy materials.

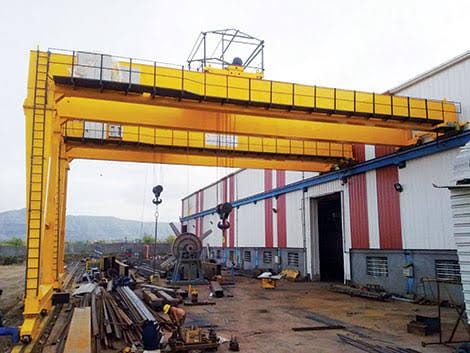

A Double Girder Semi Gantry Crane features two main girders supported by an elevated runway structure on one side and floor-travelling legs on the other. This configuration offers an effective material handling solution for facilities where a conventional overhead crane or a full gantry crane may not be practical. Its robust structure and adaptable design make it suitable for demanding lifting operations.

At Balaji Cranes Pvt. Ltd., Double Girder Semi Gantry Cranes can be customized according to lifting capacity, span, lifting height, operating speed, and site-specific requirements. These cranes are designed to support smooth load movement, improve workflow, and optimize the use of available industrial space.

Key Features of Double Girder Semi Gantry Cranes

- Heavy-Duty Twin-Girder Design: Two main girders provide a strong structural arrangement for demanding lifting applications.

- Efficient Material Handling: Supports lifting, lowering, cross travel, and long travel of industrial loads.

- Space-Efficient Installation: One side runs on an elevated runway, while the other travels on floor-level rails.

- High Lifting Capacity Options: Can be engineered to handle different load capacities based on project requirements.

- Reliable Hoisting System: Can be equipped with a suitable electric wire rope hoist or trolley-hoist arrangement.

- Customized Configuration: Span, lifting height, travel speed, and control systems can be selected according to operational needs.

- Operational Safety: Suitable safety devices can include overload protection, limit switches, emergency stops, and braking systems.

- Industrial Durability: Designed for reliable performance in appropriate industrial working environments.

Technical Specifications

Parameter Specification

Crane Type Double Girder Semi Gantry Crane

Main Girder Two girders

Support Arrangement Elevated runway on one side and floor-supported travelling legs on the other

Lifting Capacity As per project requirements

Span Customized to suit the site layout

Lifting Height As per application requirements

Hoisting Mechanism Electric wire rope hoist or suitable hoisting arrangement

Travel Motions Hoisting, cross travel, and long travel

Control System Pendant, radio remote, or cabin control, as required

Power Supply According to site requirements

Safety Features As specified in the crane design

Applications Heavy-duty industrial material handling

Final specifications depend on the load, duty classification, structural design, installation conditions, and applicable safety standards.

Applications of Double Girder Semi Gantry Cranes

Double Girder Semi Gantry Cranes are suitable for industries that require reliable lifting and transportation of heavy materials, including:

- Heavy engineering and manufacturing industries

- Steel plants and metal processing facilities

- Industrial fabrication workshops

- Automobile and machinery manufacturing units

- Warehouses and industrial storage facilities

- Foundries and forging industries

- Power plants and maintenance workshops

- Infrastructure and equipment manufacturing facilities

- Industrial assembly and production areas

Benefits of Double Girder Semi Gantry Cranes

1. Strong Structural Configuration

The twin-girder arrangement is suitable for heavy-duty lifting applications and can be engineered to meet specific load and operating requirements.

2. Efficient Space Utilization

The semi gantry configuration can be useful when one side of the crane can operate on an elevated runway and the other side requires a floor-level rail.

3. Improved Material Movement

The crane enables controlled movement of heavy materials between workstations, assembly areas, and storage zones.

4. Flexible Design Options

Lifting capacity, span, lifting height, travel speeds, and control arrangements can be tailored to the project.

5. Reliable Industrial Performance

Appropriate structural components, hoisting equipment, motors, and braking systems help support dependable operation.

6. Suitable for Demanding Applications

Depending on its engineering and duty classification, the crane can be designed for frequent lifting operations in industrial environments.

Frequently Asked Questions (Q&A)

Q1. What is a Double Girder Semi Gantry Crane?

A Double Girder Semi Gantry Crane is a material handling crane with two main girders. One side is supported by an elevated runway, while the other side is supported by legs that travel along floor-level rails.

Q2. What is the difference between a Single Girder and a Double Girder Semi Gantry Crane?

A Single Girder Semi Gantry Crane uses one main girder, while a Double Girder Semi Gantry Crane uses two. The double-girder arrangement can be suitable for heavier loads, specific lifting heights, and demanding industrial applications, depending on the design.

Q3. Where are Double Girder Semi Gantry Cranes used?

These cranes are commonly used in steel plants, fabrication workshops, engineering facilities, manufacturing units, warehouses, foundries, and heavy equipment production facilities.

Q4. Can a Double Girder Semi Gantry Crane be customized?

Yes. The crane can be customized according to lifting capacity, span, lifting height, travel distance, operating speed, building layout, and material handling requirements.

Q5. Which hoisting mechanism is used in a Double Girder Semi Gantry Crane?

An electric wire rope hoist with a suitable trolley arrangement is commonly used. The final hoisting configuration depends on the required capacity, lifting height, duty classification, and engineering design.
