Double Girder Gantry Cranes

Double Girder Gantry Crane Manufacturer – Balaji Cranes Pvt. Ltd.

Balaji Cranes Pvt. Ltd. is a manufacturer of Double Girder Gantry Cranes designed for heavy-duty lifting and efficient material handling across various industrial sectors. These cranes are suitable for steel plants, fabrication workshops, manufacturing units, warehouses, infrastructure projects, and heavy engineering facilities that require the safe and reliable movement of heavy loads.

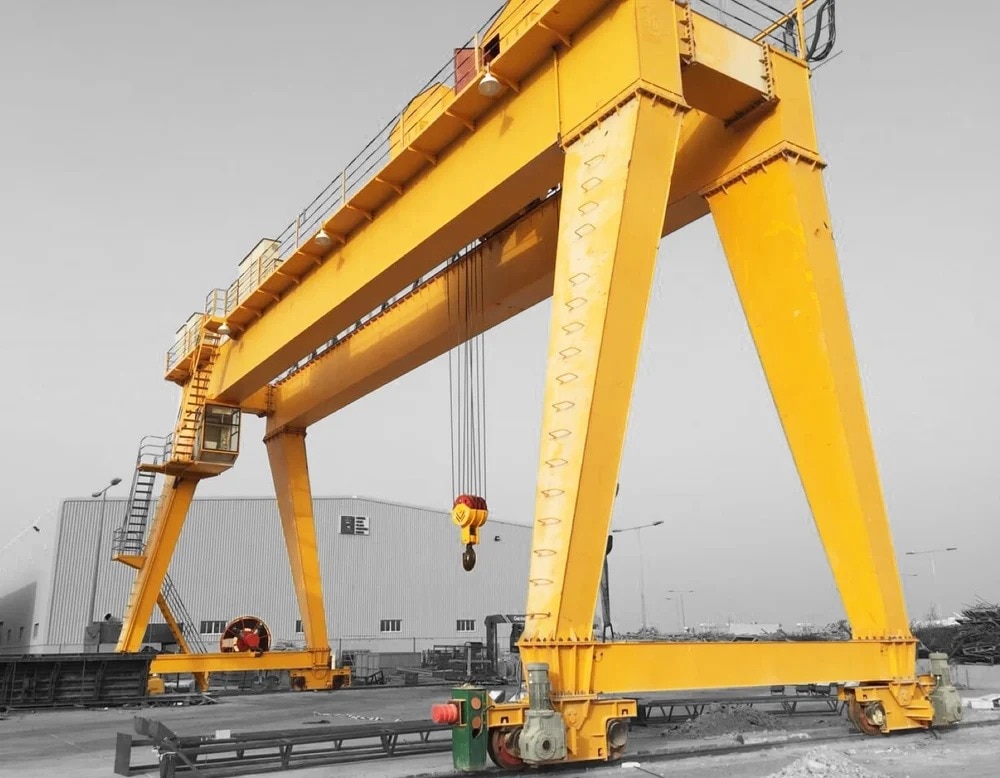

A Double Girder Gantry Crane consists of two main girders supported by legs that travel on ground-level rails or a suitable travelling surface. Unlike conventional overhead cranes that rely on elevated runway structures, gantry cranes can be installed in open yards and industrial areas where overhead support structures may not be available or practical.

Balaji Cranes Pvt. Ltd. offers crane solutions that can be customized according to lifting capacity, span, lifting height, operating speed, and site requirements. With a robust structural configuration and suitable hoisting and control systems, Double Girder Gantry Cranes are an effective choice for demanding material handling applications.

Key Features of Double Girder Gantry Cranes

- Heavy-Duty Construction: Two main girders provide a strong structural arrangement for demanding lifting applications.

- High Lifting Capacity Options: Designed to handle heavy industrial loads according to project requirements.

- Wide Span Capability: Can be configured to cover large working areas based on site layout and engineering design.

- Efficient Material Handling: Supports lifting, lowering, cross travel, and long travel.

- Flexible Installation: Suitable for indoor and outdoor applications, subject to environmental and structural requirements.

- Reliable Hoisting Mechanism: Can be equipped with an electric wire rope hoist or an appropriate trolley-hoist arrangement.

- Customized Design: Lifting height, span, travel speed, and control systems can be selected according to the application.

- Safety Features: Can incorporate overload protection, limit switches, emergency stops, and suitable braking systems.

Technical Specifications

Parameter Specification

Crane Type Double Girder Gantry Crane

Main Girder Two main girders

Support Structure Gantry legs with end carriages

Lifting Capacity As per project requirements

Span Customized according to site layout

Lifting Height As per application requirements

Hoisting Mechanism Electric wire rope hoist or suitable trolley-hoist arrangement

Travel Motions Hoisting, cross travel, and long travel

Control Options Pendant, radio remote, or cabin control

Installation Indoor or outdoor, as required

Safety Systems As specified in the crane design

Applications Heavy-duty industrial material handling

Final technical specifications depend on the required load, span, duty classification, installation environment, and applicable safety standards.

Applications of Double Girder Gantry Cranes

Double Girder Gantry Cranes are widely used in industries where heavy materials must be lifted and transported efficiently.

- Steel manufacturing and processing plants

- Heavy engineering industries

- Industrial fabrication workshops

- Construction and infrastructure projects

- Warehouses and logistics facilities

- Shipbuilding and marine facilities

- Foundries and forging industries

- Precast concrete manufacturing plants

- Power plants and industrial maintenance facilities

- Machinery and equipment manufacturing units

Benefits of Double Girder Gantry Cranes

1. Heavy-Duty Lifting Performance

The twin-girder arrangement is suitable for demanding lifting applications and can be engineered for the required load capacity and working duty.

2. No Requirement for a Conventional Overhead Runway

The crane is supported by its gantry legs, making it suitable for locations where constructing an elevated overhead crane runway is impractical.

3. Large Working Area Coverage

The crane can travel along ground-level rails to transport materials across designated production, storage, or loading areas.

4. Improved Operational Efficiency

Efficient lifting and movement of materials can reduce manual handling and help streamline industrial workflows.

5. Flexible Installation Options

Double Girder Gantry Cranes can be designed for outdoor yards or indoor industrial spaces, depending on the layout and operating environment.

6. Customized Engineering Solutions

The crane can be configured according to lifting capacity, span, lifting height, operating speed, control requirements, and site conditions.

Frequently Asked Questions (Q&A)

Q1. What is a Double Girder Gantry Crane?

A Double Girder Gantry Crane is a heavy-duty lifting system consisting of two main girders supported by legs that travel on ground-level rails or a suitable travelling surface. It is used to lift and transport heavy materials in industrial environments.

Q2. What is the difference between a Double Girder Gantry Crane and a Double Girder EOT Crane?

A Double Girder Gantry Crane is supported by travelling legs, whereas a Double Girder EOT Crane typically travels on elevated runway beams attached to the building structure. Gantry cranes are often preferred for open yards or locations without suitable elevated runways.

Q3. Where are Double Girder Gantry Cranes commonly used?

They are commonly used in steel plants, fabrication workshops, construction yards, warehouses, precast concrete plants, shipyards, and heavy engineering facilities.

Q4. What is the lifting capacity of a Double Girder Gantry Crane?

The lifting capacity depends on the crane's structural design, span, hoisting equipment, and operating duty. Balaji Cranes Pvt. Ltd. can assess project requirements to determine a suitable configuration.

Q5. Can Double Girder Gantry Cranes be used outdoors?

Yes. They can be designed for outdoor applications with appropriate provisions for weather exposure, wind loads, corrosion protection, electrical enclosures, and other relevant environmental conditions.

Q6. What type of hoist is used in a Double Girder Gantry Crane?

An electric wire rope hoist with a suitable trolley arrangement is commonly used. The hoisting system is selected according to the required lifting capacity, lifting height, operating duty, and application.

Q7. What safety features are available in Double Girder Gantry Cranes?

Depending on the design, safety features may include overload protection, hoisting and travel limit switches, emergency stops, braking systems, and other application-specific safety devices.

Q8. How do I choose the right Double Girder Gantry Crane?

Consider the load weight, span, lifting height, working duty, travel distance, installation surface, environmental conditions, power supply, and required safety systems before selecting a crane.

Q9. Can Double Girder Gantry Cranes be customized for specific industrial applications?

Yes. Crane dimensions, lifting capacity, travel speeds, control systems, hoisting arrangements, and other features can be customized to suit project specifications and site conditions.

Q10. Why choose Balaji Cranes Pvt. Ltd. for Double Girder Gantry Cranes?

Balaji Cranes Pvt. Ltd. provides industrial crane solutions tailored to customer requirements, focusing on practical design, dependable material handling, and suitable crane configurations for different industrial applications.
